BTSTC-SAR02

Details

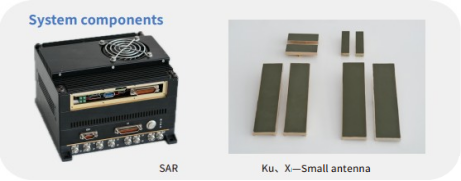

BTSTC-SAR02 is a standard version of Mini SAR, adopting pulse system, equipped with single polarization and full polarization, with stripes, real-time imaging function, and optional cluster beam function, GMTI and other functions. It can be mounted on a variety of small UAV platforms such as vertical fixed-wing and helicopter, with excellent performance and long range, with all-weather an all-time data acquisition capability.

Product Index

Band Frequency	C、X、Ku
Polarization	HH、HV、VH、VV
Working mode	Strip、Spotlight、GMTI
Strip imaging resolution	0.3mX0.3m
Spotlight imaging resolutin	0.15mX0.15m
GMTI	5km/h
Operating distance	≥10km
width	≥5km
Real-time imaging	0.3mX0.3m@3km width
Total system weight	≤8kg
Power consumption	≤300W
Recording capacity	≥4TB
Operating temperature	-40°C-50°C
