BTSTC-RA082 radio altimeter is a frequency-modulated continuous wave radio altimeter with constant beat closed-loop tracking system, which adopts technologies such as narrow-band reception, controllable echo sensitivity with height, equivalent spectrum front detection and servo control.

cyj@btstc.com
Inquiry

Share to:

Category:

Radio Altimeters

Keywords:

BTSTC
BTSTC-RA082

BTSTC-RA082

Details

Overview

BTSTC-RA082 radio altimeter is a frequency-modulated continuous wave radio altimeter with constant beat closed-loop tracking system, which adopts technologies such as narrow-band reception, controllable echo sensitivity with height, equivalent spectrum front detection and servo control. It has good anti-interference performance and electromagnetic compatibility, and is suitable for height measurement under various complex reflector conditions, especially under the condition of "sea-skimming" flight. It has the characteristics of controllable cost, small size and light weight.



composition

BTSTC-RA082 radio altimeter is composed of TT & C host, transmitting antenna feeder unit and receiving antenna feeder unit.

BASTC-RA082 altimeter products are shown in Table 1.

Table 1 List of Altimeter Products

Serial number

Name

Code name

Quantity

Remark

1

Altimeter measurement and control host

RA082

1

Damping base is included

2

Transmitting antenna feeder unit

Transmitting antenna

RA082_T

1



Transmitting feeder

SMA-J142G/JW142G-2800

1

2800mm

3

Receiving antenna feeder unit

Receiving antenna

RA082_R

1



Receiving feeder

SMA-J142G/JW142G-2800

1

2800mm



Key Features & Performance

Altimeter Range

0.5-3000m

Height measurement accuracy

±0.3m (H≤5m), 0.2± 2% H (H ≥ 5m), H is the height

Work Frequency

4300±100MH

Work Mode

FM continuous

Sensitivity

≥90dB/100m
≥105dB/500m

Range of adaptive carrier attitude change

roll angle ± 30 °, pitch angle± 30°

Dimensions

1)Host size (excluding connectors): ≤ 152mm × 86mm × 55mm;

2)Antenna size (excluding connectors): ≤ 170mm × 110mm × 14mm



Structural dimensions(mm)

Figure 1 Outline of radio altimeter

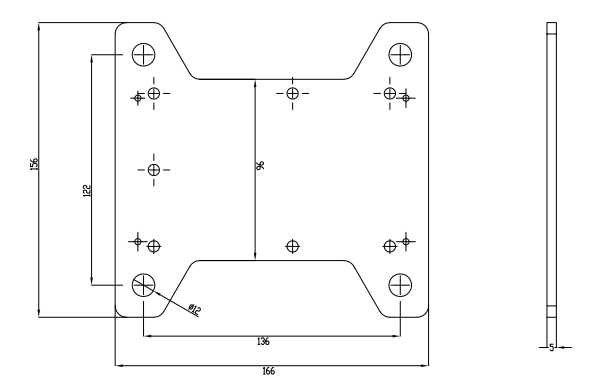

Figure 2 Outline of vibration absorbing base

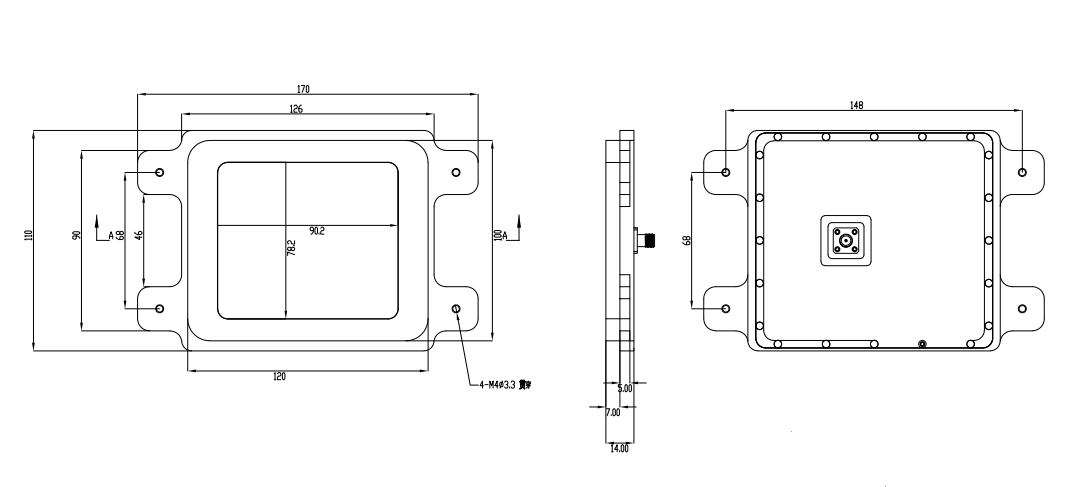

Figure 3 Antenna outline of radio altimeter
