BTSTC-RA70B

Details

Overview

BTSTC-RA70B radio altimeter is used to measure the vertical height of aircraft relative to the ground (sea), which has the advantages of low power consumption, high accuracy, good anti-interference ability and electromagnetic compatibility.

Composition

BTSTC-RA70B radio altimeter is composed of altimeter host, transmitting/receiving antenna, RF cable, etc. The name, code and quantity of each part are listed in Table 1.

Table 1 Composition of altimeter

Serial number	Name	Code name	Quantity	Remark
1	Host	BTSTC-RA70B	1
2	Transmit/receive antenna		2
3	RF cable		2	1000mm

Key Features & Performance

Altimeter Range	2-3000m
Height measurement accuracy	±0.4m(H≤10m), ±( 0.3+0.03×H) m (H ≥ 10m), H is the height
Work Frequency	4300±100MH
Work Mode	FM continuous
Range of adaptive carrier attitude change	roll angle ± 30 °, pitch angle±30°
Dimensions	1)Host size (excluding connectors):≤ 150mm × 88mm ×34.5mm; 2)Antenna size (excluding connectors): ≤ 88mm × 80mm ×5mm

Structural dimensions(mm)

Figure 1 Main Host

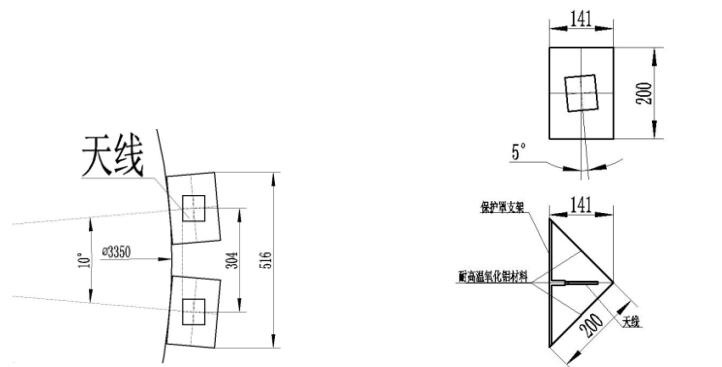

FIG. 2 Antenna structure
