BTSTC-RA084

BTSTC-RA083 radio altimeter is an all-solid-state C-band, FMCW, constant beat, closed-loop tracking measurement system radio altimeter.

cyj@btstc.com

Inquiry

Share to:

Category:

Radio Altimeters

Keywords:

BTSTC

Home page

BTSTC-RA084

Details

Composition of altimeter

No.	Name		Part Number	Quantity (set/pc)	Dimensions
1	Altimeter measurement and control unit		BTSTC-RA084	1	86mm × 62mm × 27mm
2	Transmitting antenna &feeder unit	Transmitting antenna	BTSTC-RA084-1	1	75mm × 64mm × 5mm
2	Transmitting antenna &feeder unit	Transmitting feeder	--	1	2800mm
3	Receiving antenna &feeder unit	Receiving antenna	BTSTC-RA084-2	1	75mm × 64mm × 5mm
3	Receiving antenna &feeder unit	Receiving feeder	--	1	2800mm

Key Features & Performance

Altimeter Range	0.5-1500m
Transmitting power	20dBm
Overall power consumption	≤ 8 W @ 28V
Height measurement accuracy	± 0.4m (H≤20m), ± 2% H (H ≥ 20m), H is the height
Work Frequency	4.2GHz-4.4GHz
Work Mode	FM continuous
Antenna standing wave	≤1.7
Receiving/transmitting isolation	70dB
Range of adaptive carrier attitude change	roll angle ± 30 °, pitch angle± 30°
Anti Doppler capability	≤680m/s(not less than 2Ma)
The update rate of height measurement information	20Hz
Dimensions	1)Host size (excluding connectors):≤ 86mm × 62mm × 27mm; (Including mounting lug and connector): ≤ 102mm × 62mm × 27mm; 2)Antenna size (excluding connectors): ≤ 75mm × 64mm × 5mm
Self inspection time	2s
State transition time	1s

Structural dimensions

Appendix A Host Structure

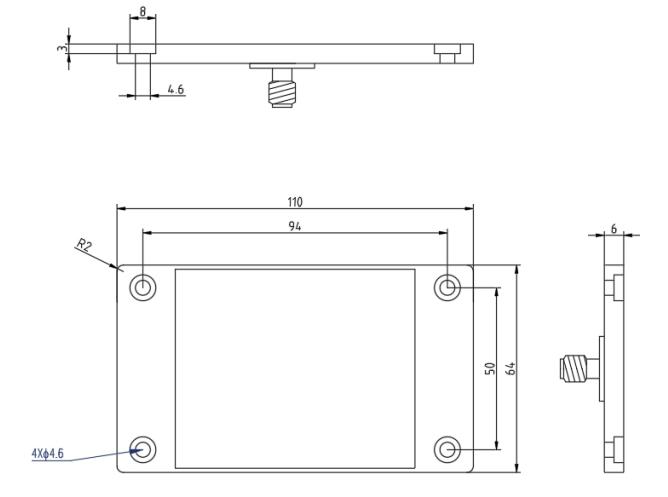

Appendix B Antenna Structure
