BTSTC-AT035

It has the ability to receive BD2-B1, GPS-L1, GPS-L2, GLONASS G 1 frequency navigation signals at the same time.

cyj@btstc.com

Inquiry

Share to:

Category:

5 element AJ CRPA

Keywords:

BTSTC

Home page

BTSTC-AT035

Details

Overview

BTSTC-AT035 can receive BD2-B1, GPS-L1, GPS-L2, GLONASS G 1 frequency navigation signals at the same time.It can realize tha anti-jamming function of BD2-B1,GPS-L1 signal.

It has the ability of receiving and amplifying GLONASS G1 and GPS-L2 navigation signals with low noise, and synthesizing the output with BD2-B1 and GPS-L1 navigation signals after anti-jamming.

Key Features & Performance

Number of channels	4 channels B1/GPS，1 channel GPS-L2，1 channel GLONASS-G1	Weight	0.94kg
Output signal power	-60dBm±5dBm	Dimension	175mmx150mmx23.6mm (Height without connector )； Assemble hole:155mm x 75mm
Anti-interference performance (ISR)	Three broadband(4MHz)：85dB Single broadband(4MHz)：95dB	Power Supply	DC 9V～DC36V
Communication connector	Serial port, TTL voltage	Power consumption	10.1W(28V/0.36A)
Working Temperature	-40℃～85℃	Physical interface	RF：SMA Power supply：J30J-9ZKP

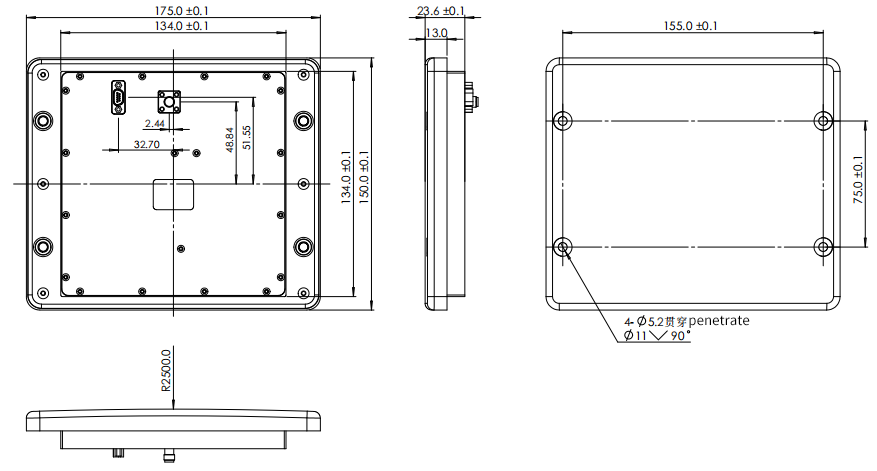

Structural dimension
