BTSTC-AT037

Details

BTSTC-AT037 anti-jamming antenna can receive BDS-B3 satellite navigation signals(One Channel) and receive GLONASS-G1 satellite navigation signals(One Channel), and receive BD-B1I/B1C/GPS-L1 satellite navigation signals(Seven Channels). It can realize the anti-jamming function of the BD-B1I/B1C/GPS-L1 frequency point signals;

It can receive and amplify BDS-B3 and GLONASS-G1 navigation signals with low noise, and synthesize shunt output with radio frequency signals of BD-B1I/B1C/GPS-L1 after anti-jamming.

$E:\项目\南京轩特微波\7B3\微信图片_20231229094748.jpg$ $E:\项目\南京轩特微波\7B3\微信图片_20231229094758.jpg$

Key Features & Performance

Received signal	BDS-B3, B1; GPS-L1;GLONASS-G1	Dimension（temple）	External size: Φ230mm×50mm; Installation size: Φ134mm×120mm
Number of channels	7 channels B1/L1, 1 channel B3, 1 channel G1	Dimension（temple）	External size: Φ230mm×50mm; Installation size: Φ134mm×120mm
Anti-jamming performance	Single broadband ≥100dB; Three broadband ≥90 dB; Six Broadband ≥85 dB	Weight	≤2500g
Channel gain (dB)	34±2	Physical interface	Low frequency connector: JY27496E13B35SN
Output signal power (dBm)	-65±5	Physical interface	Rf connector: TNC-KFD6
Power supply (V)	DC28	Operating temperature	-40℃~85℃
Power consumption (W)	≤25W	Storage temperature (℃)	-55~85℃

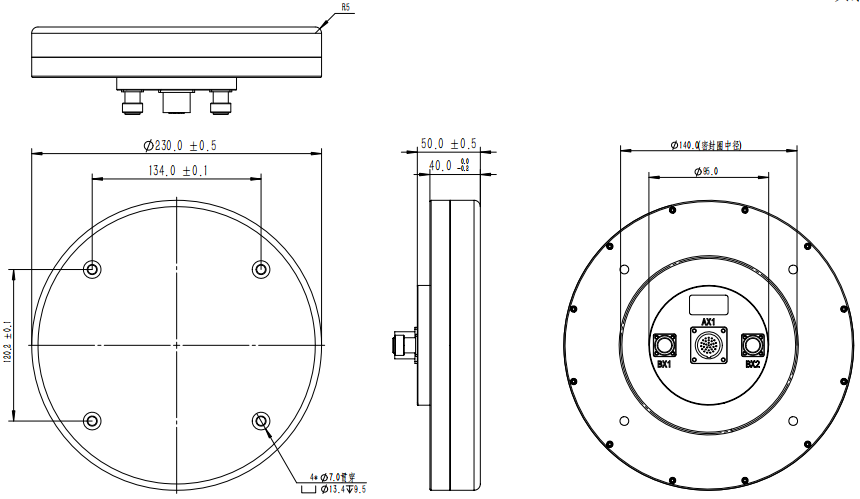

Structural dimension
