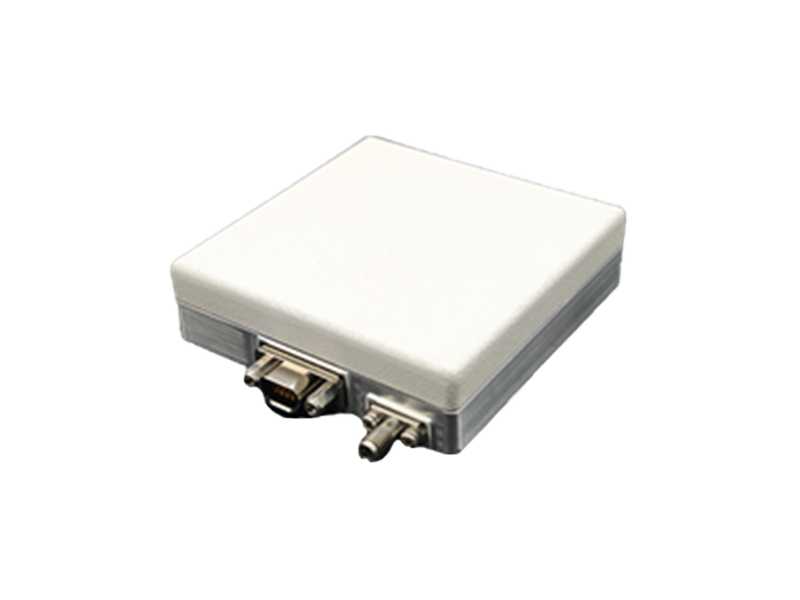

BTSTC-AT034S2

It can receive BD-B1, GPS-L1 satellite signals, output navigation positioning information, and with anti-jamming function for BD-B1, GPS-L1 frequency navigation signal.

cyj@btstc.com
Inquiry

Share to:

Category:

Small Size AJ CRPA

Keywords:

BTSTC
BTSTC-AT034S2

BTSTC-AT034S2

Details

Overview

It can receive BD-B1, GPS-L1 satellite signals, output navigation positioning information, and with anti-jamming function for BD-B1, GPS-L1 frequency navigation signal.

Key Features & Performance

Signal Receiving Capacity

BD-B1,GPS L1

Power supply(v)

DC5±0.5V

Number of Channels

4 channels

Power consumption(w)

≤5

Anti-jamming Capability

Single broadband:≥90dB

Three broadband:≥80dB

Weight(g)

≤150

Positioning Accuracy（1σ）

Level≤10m， Height≤10m

Speed Measurement Accuracy（1σ）

≤0.2 m/s

Physical interface

1 J30J-9 socket，1 SMA-K

Dimension(mm)

65 × 65 ×18

(without connectors )

Communication interface

1 serial port, RS-232C

Data format

NMEA-0183

Operating temperature

-40℃～65 ℃

Storage Temperature

-55℃～85 ℃

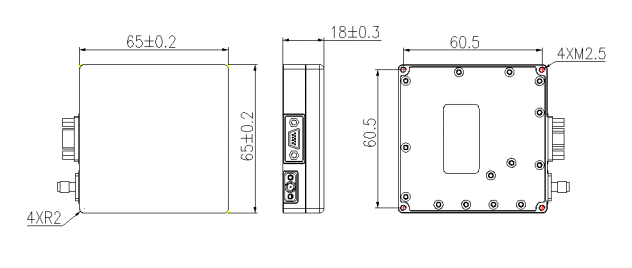

Structual  Dimension(mm)
