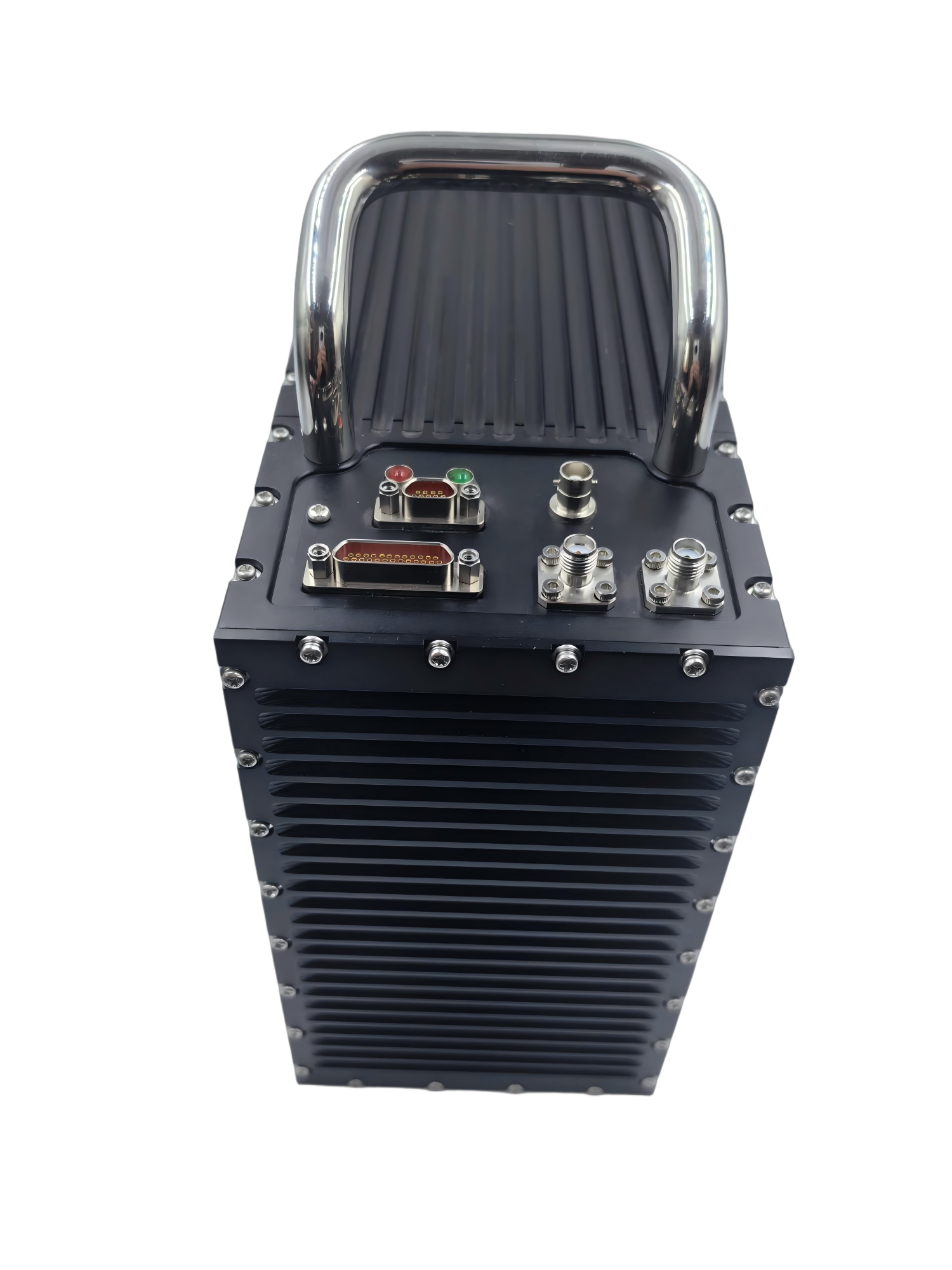

DT12-10W

Details

Overview

The data link product adopts OFDM modulation technology, LDPC coding technology, MIMO radio frequency technology, intelligent frequency selection technology, frequency hopping technology and MESH self-organizing network technology. It features small size, light weight, strong anti-interference ability, flexible networking, high reliability and support for high-speed mobility. It integrates coding, modulation, demodulation and power amplification, with small size, light weight, high integration and industrial-grade environmental adaptability. It adopts intelligent frequency selection and frequency hopping anti-interference mechanisms, suitable for communication transmission in various environments. It supports point-to-point, point-to-multipoint, MESH and other networking methods, suitable for broadband networking transmission in scenarios such as air-to-ground, air-to-sea, air-to-air, ground-to-ground, air-to-sea-to-ground, etc. It supports AES encryption and has good transmission security. It provides rich communication data interfaces to meet the needs of various application scenarios.

Key Features

1). Supports 2*2 MIMO RF technology

2). Equipped with intelligent frequency selection and frequency hopping anti-interference functions

3). point-to-point, star, and MESH networking

4). multi-node networking of 10/16/32/64/128

5). high-speed movement at 350 km/h

6). 10Mbps long-distance transmission capacity

7). RS232/RS422/TTL/LAN data interfaces

8). Features network topology display

9). Has signal strength indication function

10). multi-band product customization

11). multi-video interface customization

12). Equipped with AES128/256 encryption function

Performance

Type	DT12-10W
Operating frequency	L band 1.4G/UHF 540-678MHz /(customized)
Transmission distance	100 km
RF bandwidth	2.5/5/10/20M
RF mode	2*2MIMO
Transmitting power	2*10W
Networking mode	Point-to-point, MESH
Number of nodes supported	16 (32/64/128 optional)
Transmission capacity	10Mbps @ 100km
Receive sensitivity	-96dBm@5M
Encryption	AES256
interface	1RS232 /1TTL / 1*LAN
Anti-Jamming mode	Intelligent frequency selection/frequency hopping
Operating voltage	28V
Power consumption	150W
Size(LWH)	19215890mm
Weight	2000g
