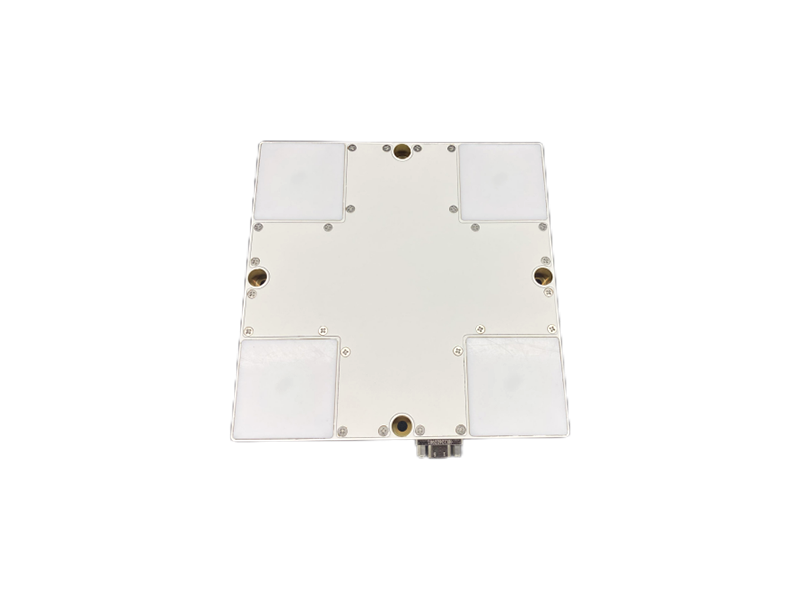

BTSTC-AT034R

It can receive satellite signals like BD-B1, GPS-L1 and GALILE E1, output navigation positioning information, and with anti-suppression interference function for BD-B1, GPS-L1, and GALILEO E1 frequency navigation signal.

cyj@btstc.com

Inquiry

Share to:

Category:

4 element AJ & AS DACU

Keywords:

BTSTC

Home page

BTSTC-AT034R

Details

Overview

1)It can receive satellite signals of BD-B1, GPS-L1 ,GALILEO E1, output navigation positioning information, and with anti-suppression interference function for BD-B1, GPS-L1, and GALILEO E1 frequency navigation signal.

2)It has the ability of resisting generating deception signal and transmitting deception signal. Under the condition that the delay is not less than 1.5 chips and the power is not stronger than 20dB of the real satellite signal, the receiver can locate normally for the generated deception signal.

3) NMEA0183 navigation data is output through standard RS-232C serial port.

Key Features & Performance

Receiving signal	BD-B1,GPS L1,GALILEO E1	Power supply	DC9V～DC36V
Channels	4 channels B1L1E1	Power consumption	≤15W
B1L1 Anti- suppression jamming ISR	Three broadband： 80dB～85dB Single broadband： 90dB～95dB	Resisting generating deception signal and transmitting deception signal	the delay is not less than 1.5 code chips, the power is not stronger than 20dB of the real satellite signal.
Location precision（1σ）	Level≤10m， Height≤10m	Weight	≤650g
Speed precision（1σ）	≤0.2米/s ≤0.2 m/s	Dimension	134mm x 134mm x36mm
Communication interface	1 serial port, RS-232C	Physical interface	1 J30J-9
Baud rate	4800bps-921600bps,Default 115200bps	Data output format	NMEA-0183,GGA,GLL,GSA,GSV,RMC,VTG,TXT; 1 start bit, 8 data bits, 1 stop bit, no parity bit.
Working temperature（ ℃）	-40～85	Storage Temperature（ ℃）	-55～85

Physical interface

1) RF signal out: SMA-K socket，be used for outer receiver(backup).

2) Power supply/Communication: J30J-9, pins are defined in the following table.

J30J-9, pins are defined in the following table.

Pin Number	Definition	Remark
1，4	Power positive pole	DC9V ～ DC36V
5，6	Power negative pole
2	RXD	RS-232C voltage
3	TXD	RS-232C voltage
7	Signal GND
8，9	Empty

Dimension
