DT12-2W-MINI

Details

Overview

MINI data link adopts multi-carrier modulation technology, LDPC coding technology and MIMO technology to realize one-way low-delay high-definition video transmission and remote control and telemetry two-way data transmission within 5 km from air to ground; video coding adopts high-efficiency H.265 coding technology to support high-definition video transmission and low-delay transmission; The transmission terminal provides RS232 \ TYPEC \ HDMI and other rich data interfaces and video interfaces, especially the ground receiving end can support a variety of different forms of reception (mobile phone, display screen) to meet various application requirements of the mission equipment.

Key Features

◎MIMO \ OFDM Modulation Technology

◎ Transmission distance: 5km

◎ One-way high-definition video transmission

◎ Bidirectional serial communication

◎ Frequency software adjustable

◎ 35-60 ms delay

◎ Support OSD

Performance

Technical system	OFDM + LDPC + MIMO
Operating band	5100-5900MHZ
Transmit Power	2 * 2 W
RF Bandwidth	20 M/40 M
Modulation	QPSK/16Qam/64Qam
Transmission capacity	MAX 40Mbps
Receiving sensitivity	-90dBm/20M
Networking mode	point-to-point and multi-channel transmission
Data interface	air TLL/embedded USB; Ground: USB \ HDMI \ RS232
Encoding mode	H264/H.265 (optional)
Video input	USB embedded
Video output	TYPEC/HDMI/1080P backward compatible
Code delay	30-60ms
Receiver type	mobile phone, tablet, display screen (optional)
Power supply transmitting termina	l 8-28VDC receiving terminal 5VDC (TYPEC/12VDC (HDMI output))
Power consumption Transmit:	20W Receive: 5W
Operating temperature	-40-60 ℃
Storage temperature	-55-60 ℃

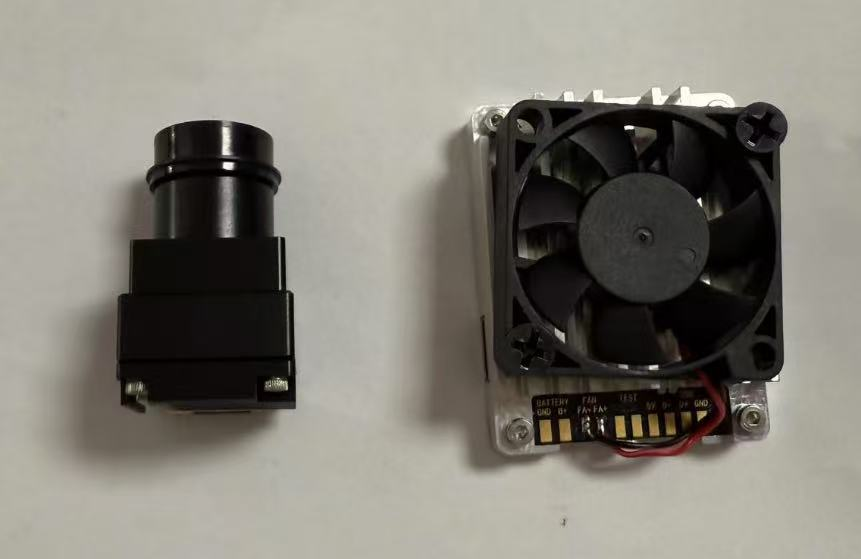

Size Camera: 19 * 19 * 30 mm Transmitter: 37 * 48 * 18 mm Receiver: 250 * 88 * 42 mm
Weight Camera: 40g Transmitter: 38g Receiver: 350g
