BTSTC-AT038R

Receiving GPS-L2 frequency and BDS-B1/GPS-L1 frequency radio frequency navigation signal and having the function of suppressing all kinds of interference signal of GPS-L2 frequency and BDS-B1/GPS-L1 frequency.

cyj@btstc.com

Inquiry

Share to:

Category:

8 element AJ & AS DACU

Keywords:

BTSTC

Home page

BTSTC-AT038R

Details

Overview

1)It can receive satellite signals of GPS-L2 and BDS-B1/GPS-L1 at the same time,and realize the anti-jamming function for the GPS-L2 and BDS-B1/GPS-L1 frequency navigation signal.

2)It has the ability of resisting generating deception signal and transmitting deception signal. Under the condition that the delay is not less than 1.5 chips and the power is not stronger than 20dB of the real satellite signal, the receiver can locate normally for the generated deception signal.

3)It can receive the BDS-B3 navigation signal and output the GPS-L2 and BDS-B1/GPS-L1 navigation signal to the internal receiver after the low noise amplification and anti-jamming.

4) NMEA0183 navigation data will be output through standard RS-422A serial port.

Key Features & Performance

Number of channels	4 Channels B1/GPS-L1，4 Channels GPS-L2，1 Channel B3	Weight	2.73kg
Output signal power	-65dBm±5dBm	Dimension	210mmx210mmx53mm (Height without connector )
Anti-interference performance (ISR)	Three broadband(20MHz)： 75dB～80dB； Single broadband(20MHz)：85dB～90dB	Power Supply/ Power consumption	DC18V～DC36V/ 14.2W(28V)
Communication interface	Serial port, RS-422A voltage	Physical interface	JY27496E13B35PN
Working Temperature	-40℃～85℃	Storage Temperature（ ℃）	-55～85

Physical interface

1) Power supply/Communication: JY27496E13B35PN, pins are defined in the following table.

JY27496E13B35PN, pins are defined in the following table.

Terminal No.	Name of Signal	Remark
1	28V+	Power positive
2	28V+
3	28V+
4	28V-	Power negative
5	28V-
6	28V-
7	RS232-RX-1	UART，reserve
8	RS232-TX-1
9	GND
10	RS232-RX-2
11	RS232-TX-2
12	GND
13
14
15
16	RS422-T+	UART,NMEA0183 DATA OUTPUT
17	RS422-T-
18	RS422-R+
19	RS422-R-
20	GND
21
22

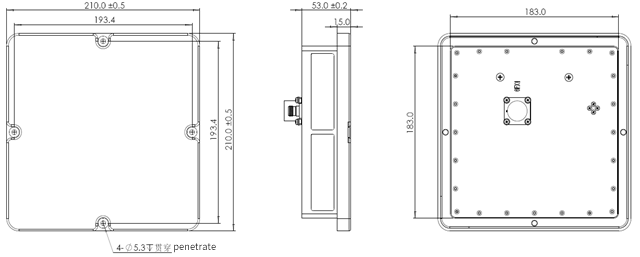

Dimension
