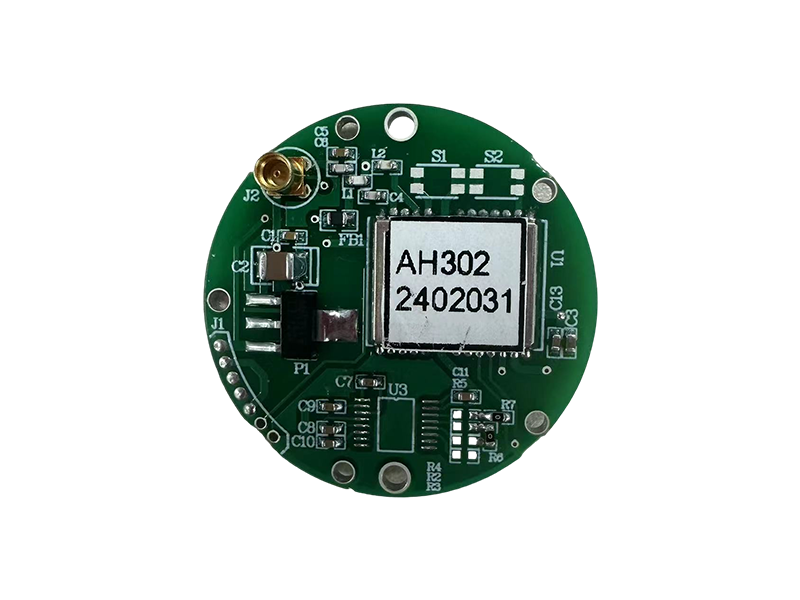

BTSTC-RM018

BTSTC-RM018 GNSS receiver is a high-dynamic navigation and positioning receiver supporting multiple frequency points.

cyj@btstc.com

Inquiry

Share to:

Category:

Single-antenna Receiver

Keywords:

BTSTC

Home page

BTSTC-RM018

Details

Overview

BTSTC-RM018 GNSS receiver is a high-dynamic navigation and positioning receiver supporting multiple frequency points.

BTSTC-RM018 high dynamic satellite navigation receiver

Features

• High dynamic and low power consumption

• Fast-searching ability to satellite signals

• The ephemeris can be pre-installed to realize rapid positioning

• Working frequency points can be customized

Technical Specification

Item	Performance
	Type A: RM018-L1/G1/B1	Type B: RM018-L1/B3
Operating frequency point	GPS：L1 BDS：B1 GLONASS：L1	GPS：L1 BDS：B3
Signal tracking	Cold start 50 s Recapture time < 2S
Positioning accuracy	Horizontal positioning accuracy		(1σ) 5m (PDOP ≤ 2)
	Vertical positioning accuracy		(1σ) 10m (PDOP ≤ 2)
Velocity measurement accuracy	Horizontal velocity measurement accuracy		(1σ) 0.1m/s (PDOP ≤ 2)
	Vertical test accuracy		(1σ) 0.2m/s (PDOP ≤ 2)
Timing accuracy	20 ns
Dynamic performance (High dynamicversion & low dynamic version)	Low Dynamic Version: L Type		Acceleration: 6g Max Speed: 515m/s
	High Dynamic Version: H type		Max Acceleration: 20g Max Speed: 2000m/s
Sensitivity	Cold start -145 dBm Hot Start -150 dBm Recapture -155 dBm
Physical feature	Size: Φ 38mm Weight < 10g
RF interface	Output current < 100mA
Electrical parameters	Input voltage + 5V DC Power consumption < 1 W in operating mode
Data update rate	Max update rate of positioning data: 10Hz
Data protocol	Support standard NMEA statements, binary statements
Environmental indicators	Working temperature: -40 ℃ ~ + 85 ℃ Storage temperature: -55 ℃ ~ + 85 ℃

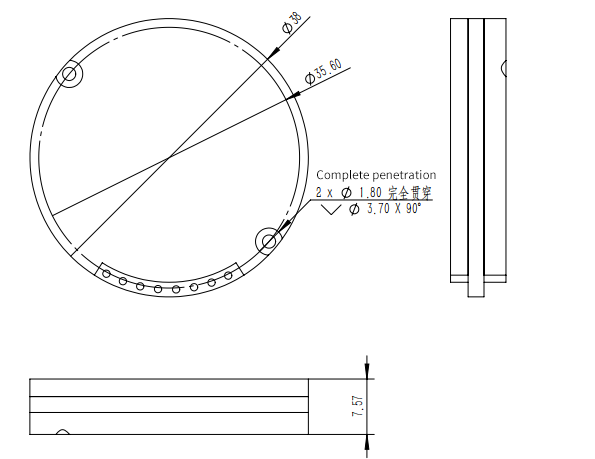

Dimension
