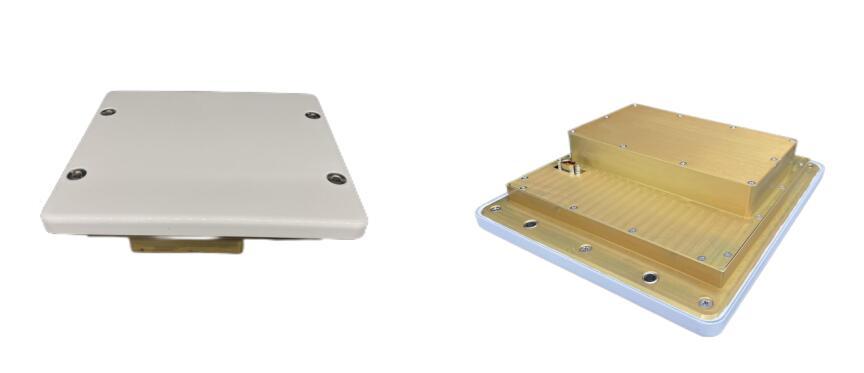

BTSTC-AT035R

It has the ability to receive BDS-B1,GPS-L1,BDS-B2b,GPS-L2 frequency navigation signals at the same time.

cyj@btstc.com

Inquiry

Share to:

Category:

5 element AJ & AS DACU

Keywords:

BTSTC

Home page

BTSTC-AT035R

Details

Overview

1)It can receive satellite navigation signals of BDS-B1/GPS-L1/BDS-B2b/GPS-L2 at the same time and realizes the anti-jamming function for the BDS-B1/GPS-L1 frequency signal.

2)it has the ability of resisting generating deception signal and transmitting deception signal. Under the condition that the delay is not less than 1.5 chips and the power is not stronger than 20dB of the real satellite signal, the receiver can locate normally for the generated deception signal.

4)It has the ability of receiving and amplifying BDS-B2b、GPS-L2 navigation signals with low noise, and synthesizing the output with BDS-B1 and GPS-L1 navigation signals after anti-jamming.

5)NMEA0183 navigation data will be output through standard RS-232C serial port.

Key Features & Performance

Receiving signal	BD-B1,GPS L1,BDS-B2b，GPS-L2	Positioning accuracy（1σ）	Level≤10m，Height≤10m
Number of channels	4 channels B1/L1，1 channel BDS-B2b，GPS-L2	Speed precision（1σ）	≤0.2 m/s
Anti- suppression interference performance(ISR)	Three broadband(4MHz)： 80dB～85dB； Single broadband(4MHz)： 90dB～95dB	the ability of resisting generating deception signal and transmitting deception signal	the delay is not less than 1.5 chips and the power is not stronger than 20dB of the real satellite signal
Communication interface	Serial port, RS-232C voltage	Data output format	NMEA-0183,GGA,GLL,GSA, GSV,RMC,VTG; 1 start bit, 8 data bits, 1 stop bit, no parity bit.
Power Supply	DC9V～DC36V	Power consumption	≤15W
Dimension	175mmx150mmx43.6mm； Assemble hole: 155mm x 75mm	Weight	≤1.2kg
Working Temperature	-40℃～85℃	Physical interface	Power supply：J30J-9ZKP

Physical interface

Physical interface Model: J30J-9ZKP, pins are defined in the following table.

Number	Definition	Remark
1,4	Power positive pole	DC9V ～ DC36V
5,6	Power negative pole
2	Serial port RXD	RS-232C voltage
3	Serial port TXD	RS-232C voltage
7	Signal GND
8,9	empty

Dimension
