BTSTC-AT034S

Details

Overview

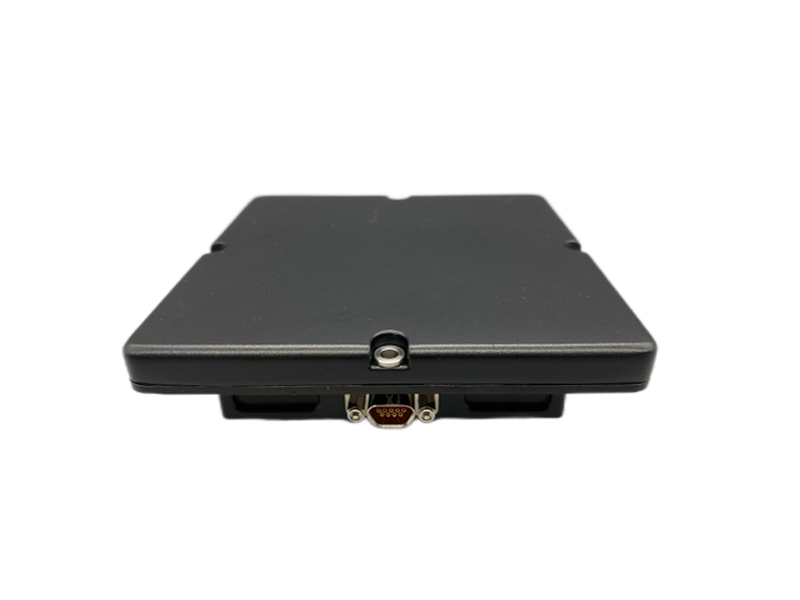

It can receive BD3-B1, GPS-L1, GALILEO E1 and GLONASS G1 satellite signals, output navigation and positioning information, and have the anti-interference function of BD3-B1, GPS-L1 and GALILEO E1 frequency point satellite signals.

Key Features & Performance

Signal Receiving Capacity	BD3-B1，GPS L1，GALILEO E1，GLONASS G1	Power supply (V)	DC9V～DC36V
Number of channels	4-channel B1L1E1, 1-channel GLONASS	Power Consumption (W)	≤12
Anti-jamming Capability	Single broadband: 70dB ~ 80dB Three broadband: 60dB ~ 70dB	Weight (kg)	≤0.3kg
Positioning accuracy (1 σ)	Level ≤ 10m, elevation ≤ 10m Level≤10m，Height≤10m	Speed measurement accuracy (1 σ)	≤ 0.2m/s
Physical interface	1 J30J-9ZKP, 1 MCX	Dimension (mm)	100mm x 100mm x25mm (Length and width dimensions do not include connectors)
Communication interface	1 serial port, TTL-3.3V	Data format	NMEA-0183
Operating temperature (℃)	-40～85	Storage temperature (℃)	-55～85

Interface Definition

1)RF X2: MCX type HF socket, RF signal output for external receiver (backup);
2)Power supply and serial port X1: J30J-9ZKP, pin definitions are shown in the table below.

Table 1 Power supply and serial port definition

Pin number	Signal definition	Remark
1，4	Power supply positive	DC9V ～ DC36V
5，6	Negative pole of power supply	GND
2	Serial port RXD	3.3 V TTL level
3	Serial port TXD	3.3 V TTL level
7	Signal ground
8，9	Empty
