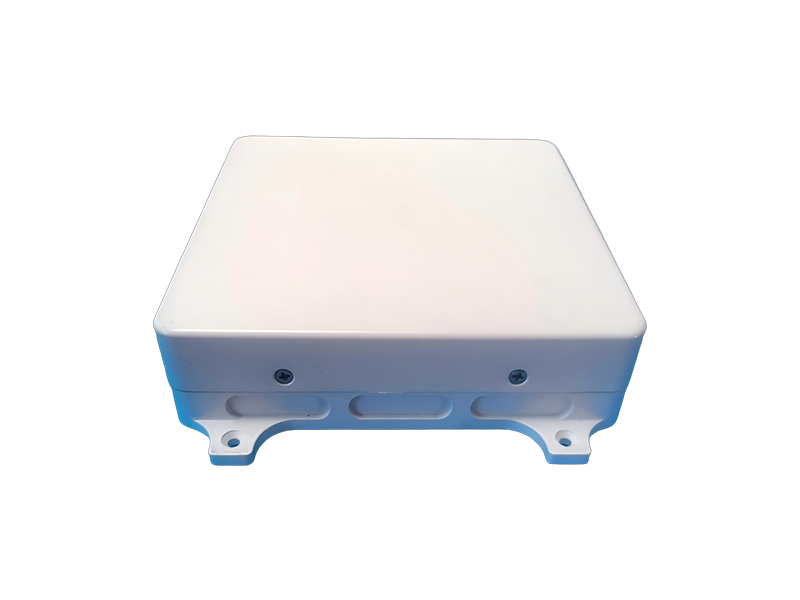

BTSTC-AT0114A

BTSTC-AT0114A Anti-jammming antenna supports the four-element wideband anti-interference function of Beidou-3 B1+GPS L1 frequency points, which can suppress various wideband and narrowband isobaric interferences such as harmonics, sweep frequencies, pulses, frequency modulation and phase modulation in the Beidou-3 B1+GPS L1 frequency band.It features comprehensive functions, high performance, low power consumption, light weight and small size.

cyj@btstc.com

Inquiry

Share to:

Category:

Small Size AJ CRPA

Keywords:

BTSTC

Home page

BTSTC-AT0114A

Details

Overview

Key Features & Performance

Receive the signal	BD3-B1，GPS- L1	Power supply (V)	DC5V
Anti-jamming frequency points	BD3-B1，GPS- L1	Power Consumption (W)	≤6.5
Anti-jamming capability	single broadband: ≥90 dB three broadband: ≥80dB	Weight (g)	≤280g
Positioning accuracy (1 σ)	Level≤10m，Height≤10m	Speed measurement accuracy (1 σ)	≤0.2 m/s
Physical interface	J30J-9ZKP, SMA-K	Dimension (mm)	99mm×99mm×27mm
Communication interface	RS232	Data format	NMEA-0183
Operating temperature (℃)	-40～75	Storage temperature (℃)	-45～85

Pin definition

No.	Name	Description
1	VCCIN	5VDC power supply
2	VCCIN	5VDC power supply
3	GND	GND
4	GND	GND
5	RS232A_RXD	Serial port A input
6	RS232A_TXD	Serial port A output
7	RS232B_RXD	Serial port B input
8	RS232B_TXD	Serial port B output
9	RS232_GND	GND

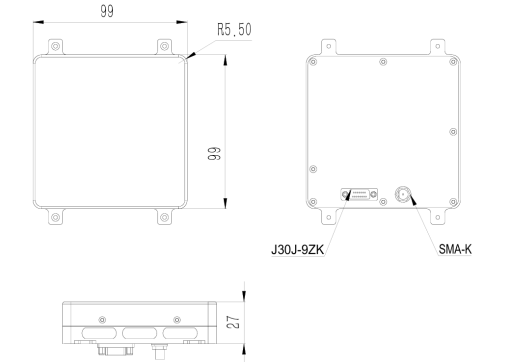

Structural Dimensions(mm)
