BTSTC-AT0216

The BTSTC-AT0216 GNSS Navigation anti-jamming antenna is equipped with 16 built-in array antennas,it can provide protection for critical satellite navigation frequency points. The antenna adopts null steering technology.It can provide anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. It can work with civil and military GNSS receivers for land, sea, air platforms (including unmanned aerial systems) and fixed installations.

cyj@btstc.com

Inquiry

Share to:

Category:

16 element AJ CRPA

Keywords:

BTSTC-AT0216 Anti-jamming Antenna

Home page

BTSTC-AT0216

Details

Overview

Key Features & Performance

Signal Receiving Capacity	BD-B1,GPS-L1,Galileo-E1,Glonass L1	Power supply(v)	24V
Number of channels	16	Protected channels	15
Protected frequency points	BD-B1,GPS-L1,Galileo-E1,Glonass L1	Power consumption(w)	≤30
Anti-jamming Capability	15 broadband：95dB	Weight(g)	≤1200
Physical interface	1 SMA Female	Dimension(mm)	< 26020036.5
Communication interface	1 serial port	Data format	NMEA-0183
Operating temperature	-40℃～70 ℃	Storage Temperature	-55℃～85 ℃

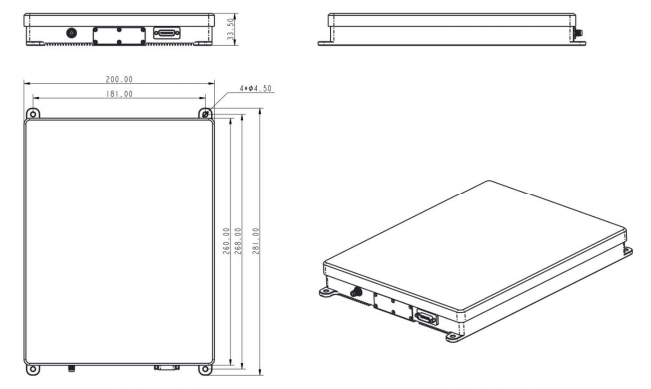

Structural dimensions(mm)
