BTSTC-AT0114B

BTSTC-AT0114B Anti-jammming antenna supports the four-element wideband anti-interference function of Beidou-3 B1+GPS L1 frequency points, which can suppress various wideband and narrowband isobaric interferences such as harmonics, sweep frequencies, pulses, frequency modulation and phase modulation in the Beidou-3 B1+GPS L1 frequency band.It features comprehensive functions, high performance, low power consumption, light weight and small size.

cyj@btstc.com

Inquiry

Share to:

Category:

Small Size AJ CRPA

Keywords:

BTSTC-AT0114B Anti-jamming Antenna

Home page

BTSTC-AT0114B

Details

Overview

Key Features & Performance

Receive the signal	BD3-B1，GPS- L1	Power supply (V)	DC5V
Anti-jamming frequency points	BD3-B1，GPS- L1	Power Consumption (W)	≤6.5
Anti-jamming capability	single broadband: ≥85dB three broadband: ≥75dB	Weight (g)	≤200g
Physical interface	J30J-9ZKP, SSMA-K	Dimension (mm)	65mm×65mm×19.5mm
Communication interface	RS232	Data format	NMEA-0183
Operating temperature (℃)	-40～60	Storage temperature (℃)	-55～75

Pin definition

No.	Name	Description
1	VCCIN	5VDC power supply
2	VCCIN	5VDC power supply
3	GND	GND
4	GND	GND
5	RS232A_RXD	Serial port A input
6	RS232A_TXD	Serial port A output
7	RS232B_RXD	Serial port B input
8	RS232B_TXD	Serial port B output
9	RS232_GND	GND

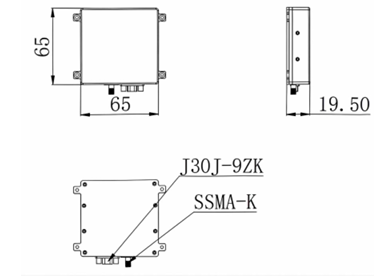

Structural Dimensions(mm)
