BTSTC-AT1014A

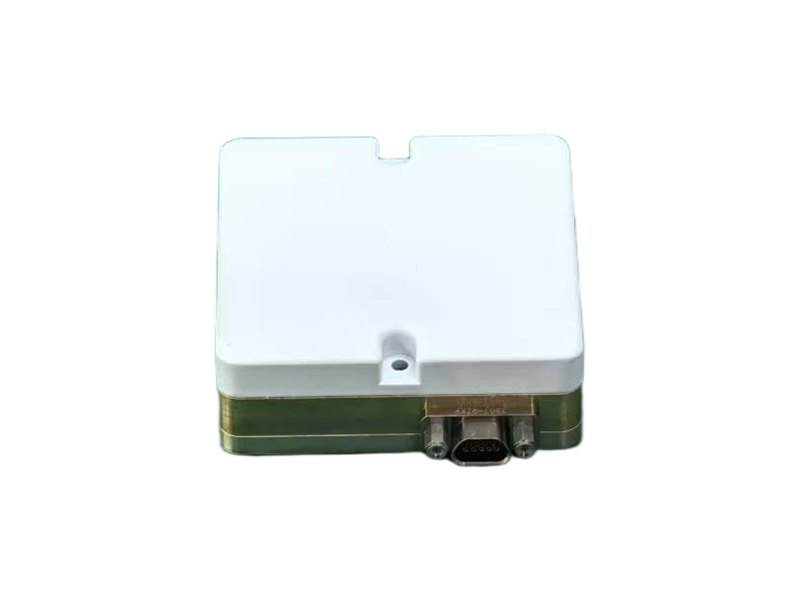

BTSTC-AT1014A anti-jamming all-in-one device completes the receiving, amplification, down-conversion, filtering and anti-jamming processing of 4-channel BDS B1,GALILEO E1 and GPS L1 frequency point signals. It can realize high-precision positioning and precise timing under strong jamming conditions. It has a built-in navigation receiver that outputs navigation position information.

cyj@btstc.com

Inquiry

Share to:

Category:

Small Size AJ CRPA

Keywords:

BTSTC

Home page

BTSTC-AT1014A

Details

Overview

Technical Specification

Receive the signal	BDS-B1，GLALILEO-E1, GPS L1	Power supply (V)	DC 9-24V
Number of channels	4-channel B1L1E1	Power Consumption (W)	≤6
Anti-jamming capability	Single broadband: ≥ 105dB Three broadband: ≥ 90dB	Weight (kg)	≤0.15kg
Positioning accuracy (1 σ)	Level≤10m，Height≤10m	Speed measurement accuracy (1 σ)	≤0.2 m/s
Physical interface	J30J	Dimension (mm)	60mm × 60mm × 20mm (Length and width dimensions do not include connectors)
Communication interface	TTL	Data format	NMEA-0183
Operating temperature (℃)	-40～70	Storage temperature (℃)	-55～85

Interface and Dimension

Power Data Interface

The power data interface is J30J connector, and the signal definition is as below

Connector Number	Signal definition	Signal description	Explain
1,6	9-24V	Power supply input
2,7	GND	Power ground
8	LVTTL_RX	Built-in receiver serial
9	LVTTL_TX	Built-in receiver serial
3	PPS	PPS out	Pulse per second signal LVTTL
4,5

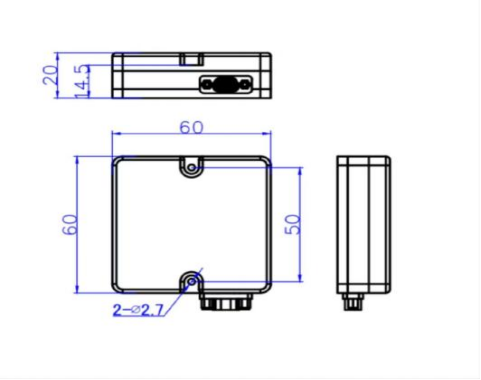

Structural Dimensions(mm)

(60.0 ± 0.5) mm × (60.0 ± 0.5) mm × (20.0 ± 0.5) mm.
