BTSTC-AT0211

The BTSTC-AT0211 GNSS Navigation anti-jamming antenna is equipped with 11 built-in array antennas,it can provide protection for critical satellite navigation frequency points. The antenna adopts null steering technology. It can provide anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. It can work with civil and military GNSS receivers for land, sea, air platforms (including unmanned aerial systems) and fixed installations.

cyj@btstc.com

Inquiry

Share to:

Category:

11 element AJ CRPA

Keywords:

BTSTC-AT0211 Anti-jamming Antenna (11 element)

Home page

BTSTC-AT0211

Details

Overview

Key Features & Performance

Signal Receiving Capacity	BD-B1,GPS-L1L2,Galileo-E1,Glonass L1	Power supply(v)	12V
Number of channels	11	Protected channels	9
Protected frequency points	BD-B1,GPS-L1L2,Galileo-E1, >Glonass L1	Power consumption(W)	≤ 25
Anti-jamming Capability	Three broadband：90dB	Weight(g)	≤ 1100
Physical interface	1×J30J 21-pin Socket 1×SMA Female	Dimension(mm)	Ø252×36.5
Communication interface	1 serial port	Data format	NMEA-0183
Operating temperature	-40℃～70 ℃	Storage Temperature	-55℃～85 ℃

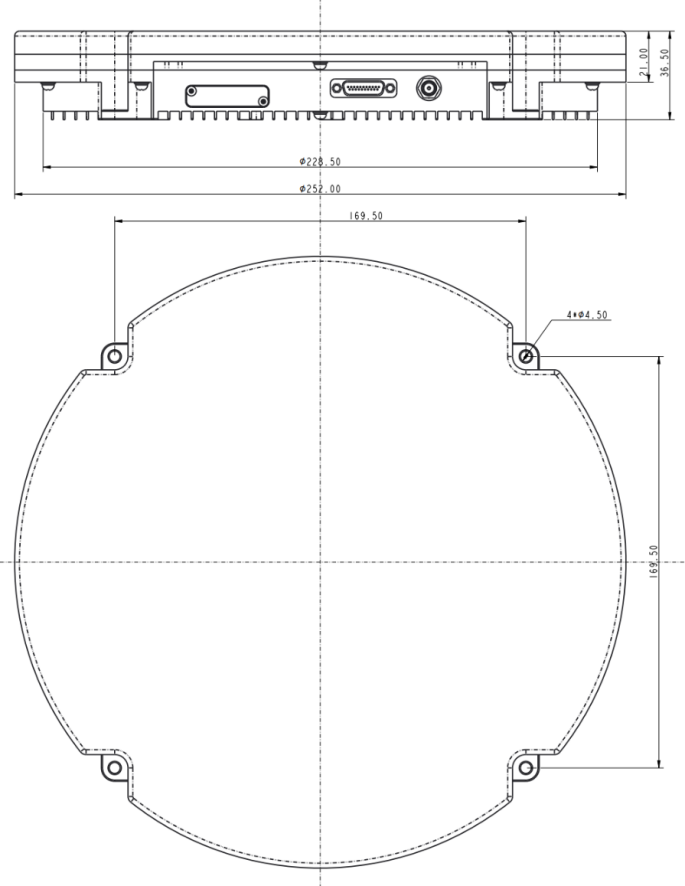

Structural Dimensions(mm)
