BTSTC-02F70

F70 is equipped with high-precision fiber optic gyroscope, high-precision quartz flexible accelerometer, and it supports GNSS receiver.

cyj@btstc.com

Inquiry

Share to:

Category:

FOG-based INS

Keywords:

BTSTC

Home page

BTSTC-02F70

Details

Overview

02F70 is equipped with high-precision fiber optic gyroscope, high-precision quartz flexible accelerometer, and it supports GNSS receiver.

02F70 can achieve high-precision measurement of moving carriers in terms of heading, attitude, velocity and position. It is designed with advanced intelligent integrated navigation algorithms and Kalman filtering, especially optimization design for GNSS occlusion and multipath interference situations.

Benefits

• Quickly determine the initial heading and attitude

• Real time output for heading and attitude

• Built in GNSS receiver

• Dynamic fast alignment

• INS/GNSS integrated design

• Enhanced Kalman filtering algorithm

APPLICATION

• Vehicle navigation

• Airborne navigation

• Ship navigation

• Stable control

Key Features & Performance

Positioning accuracy	≤ 3m (1 σ） (Single point)
Positioning accuracy	≤ 2cm+1ppm (1 σ） (RTK)
Heading accuracy	0.05 ° (single antenna dynamic alignment)
Heading accuracy	0.1 ° (low dynamic dual antenna assistance, 2m baseline)
Attitude accuracy	0.01°（1 σ）
Velocity measurement accuracy	0.02m/s (carrier velocity is less than 500m/s)
Zero bias stability	≤0.1 °/h (room temperature, 10s smoothing)

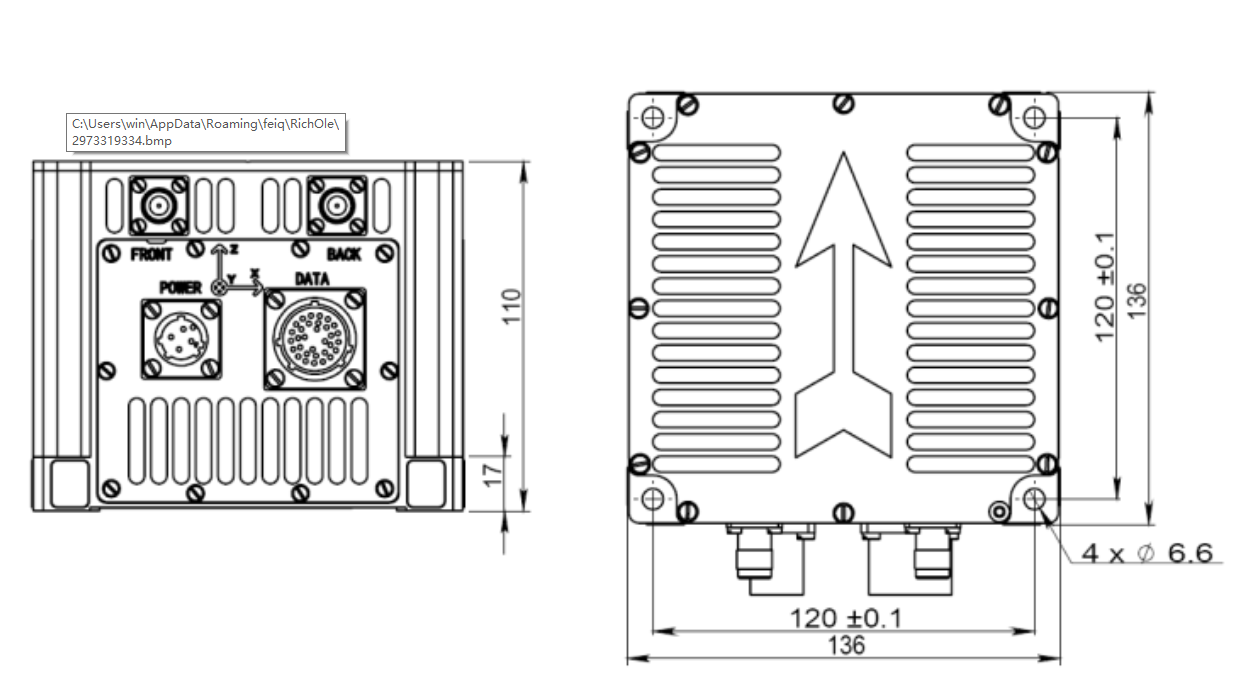

Overall dimensions	136mm×136mm×110mm
Weight	≤2.6kg
Power consumption	＜15W，12-36V
