BTSTC-RA121

Details

Overview

BTSTC-RM121 can continuously and accurately measure the relative altitude of the carrier to the ground or sea surface, and can be widely used in aircraft landing system, helicopter altitude indicator instrument, ground tracking system for ultra-low altitude flight, etc. The radio altimeter adopts the advanced 32-bit ARM processor and the surface attached integrated circuit, which greatly reduces the volume and weight of the whole device, significantly reduces the failure rate of the product, and greatly improves the MTBF. At the same time, the table enhances the system self-check, setting, temperature compensation and other functions, which greatly enhances the practical type of equipment and the reliability and maintainability of the equipment.

Composition of altimeter

No.	Name		Part Number	Quantity (set/pc)	Dimensions
1	Altimeter measurement and control unit		BTSTC-RA121	1	86mm × 52mm × 36mm
2	Transmitting antenna &feeder unit	Transmitting antenna	BTSTC-RA121-1	1	90mm × 67.6mm × 4mm
2	Transmitting antenna &feeder unit	Transmitting feeder	--	1	1500mm
3	Receiving antenna &feeder unit	Receiving antenna	BTSTC-RA121-2	1	90mm × 67.6mm × 4mm
3	Receiving antenna &feeder unit	Receiving feeder	--	1	1500mm

Key Features & Performance

Altimeter Range	0-600/800/1500m
Transmitting power	20dBm
Overall power consumption	≤ 6W @ 28V
Height measurement accuracy	0-800 m，H±(0.2+2％H) 800~1500 m，H±3％H
Work Frequency	4.2GHz-4.4GHz
Work Mode	FM/CW
Antenna standing wave	≤2.5
Receiving/transmitting isolation	70dB
Range of adaptive carrier attitude change	roll angle ± 30 °, pitch angle ± 30°
The update rate of height measurement information	20Hz
Dimensions	1）Host size (excluding connectors):≤ 86mm × 52mm × 36mm; 2）Antenna size (excluding connectors): ≤ 90mm × 67.6mm × 4mm
Weight	Host≤188g Antennas≤120g(2)

Structural dimensions(mm)

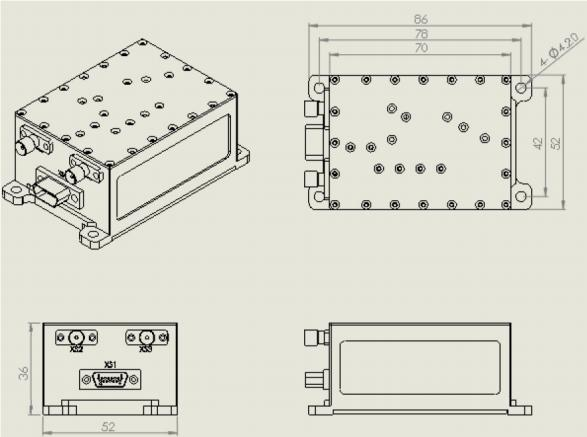

Figure1 BTSTC-RA121 Main Host

Figure 2 BTSTC-RA121 Antenna
