BTSTC-AT038

Details

Overview

BTSTC-AT038 anti-jamming antenna can receive reliable BDS-B3 , BDS-B1/GPS-L1 and GPS-L2 frequency point RF satellite navigation signal. It has anti-jamming function when receiving and processing BDS-B1/GPS-L1 and GPS-L2 frequency point signals.

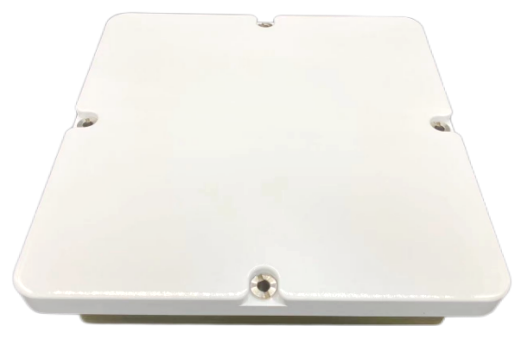

Fig1 BTSTC-BT038 Anti-jamming Antenna

Key Features & Performance

Number of channels	4 Channels B1/GPS-L1，4 Channels GPS-L2， 1 Channels B3
Output signal power	-65dBm±5dBm
Anti-jamming Performance (ISR)	Three broadband： 75dB～80dB； Single broadband： 85dB～90dB
Gain of channel	37dB±1dB
Channel isolation	≥60dB
Channel phase consistency	≤ 5 degree
Channel gain consistency	≤1dB
Working Temperature	-40℃～85℃
Communication interface	Serial port, RS-422A voltage
Physical interface	RF：SMA-K； Power supply：JY27496E13B35PN
Power consumption	14.2W(28V)
Power supply	DC18V～36V
Dimension	210mmx210mmx53mm
Weight	2.73kg

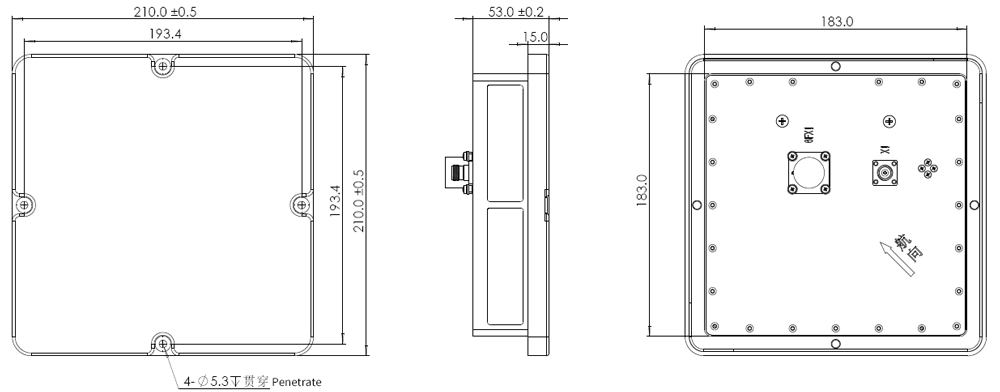

Structural dimension
